For conveying smoke gases of the temperature class F300

Compact size for installation even when space is tight.

  • ►Casing available in all RAL colours
  • ►Nine sizes
  • ►Impeller’s nominal diameter 400 to 1,600 mm
  • ►Volume flow rate up to 250,000 m³/h
  • ►Total pressure increase max. 1,800 Pa

Application

Application

  • For installation inside and outside of the fire zone.
  • Suitable for free inlet / outlet or for pipeline installation in a horizontal and vertical style.
  • Dual smoke extract and ventilation function.

Description

Variants

  • Design as wall-mounted smoke exhaust fan with wall mounting plate and outlet casing with self-powered multileaf damper

Accessories

  • Fan diagnosis system VD
  • Shock pulse bearing monitoring STI
  • Acoustic and thermal insulation
  • Weather protection roof for acoustic and thermal insulation
  • Round silencers TSR (inlet and outlet side)
  • Extension duct
  • Inspection hatch
  • Self-powered shut-off damper
  • Flexible connectors
  • Matching flange
  • Equipotential bonding
  • Bellmouth
  • Cover grille (inlet and outlet side)
  • Diffuser
  • Outlet duct with cover grille
  • Mounting feet
  • Brackets (for vertical assembly)
  • Spring anti-vibration mounts
  • Terminal box
  • Local isolator loose (for outside of fire area)
  • Angular wall ring with brackets (inlet and outlet side)
  • Silicone-free type
  • Extract air and smoke extract controller
  • Surface protection powder-coated and/or
  • hot-dip galvanised in corrosion protection category C2 to C5M

Classification, standards and guidelines

  • EN 12101 – Part 3
  • F300 CE no.: 0761-CPD-0013 incl. declaration of performance (DoP) Application approval no. Z-78.11-131
  • F300 CE no.: 0761-CPD-0073 incl. declaration of performance (DoP) Application approval no. Z-78.11-191


Life cycle assessment
A life cycle assessment is available for the product series in form of an Environmental Product Declaration (EPD) that has been checked and published by a programme holder.


TECHNICAL INFORMATION

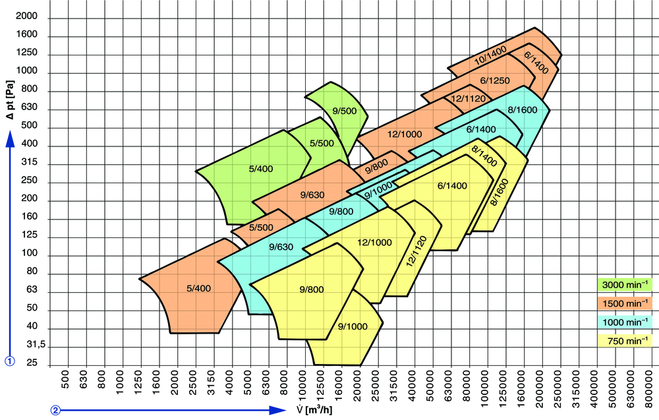

Quick sizing

  • Quick sizing
BVAXO Leistungsbereich 00229512_0

t = 20 °C
ρ = 1,2 kg/m³
① Totaldruckerhöhung
② Volumenstrom

Dimensions and weight

  • Dimensions and weight

Dimensions [mm]①②Ø clear widthØkØDzxdLMmax③

Ø clear width Øk ØD zxd L Mmax

315

71-80

320

356

386

8 x 9.5

150

265

6

400

71-90

401

438

468

12 x 9.5

188

348

11

400

100

401

438

468

12 x 9.5

376

390

16

500

80-100

504

541

571

12 x 9.5

225

570

16

500

90-132

504

541

571

12 x 9.5

450

451

22

630

90-112

634

674

712

16 x 11.5

286

595

30

630

132

634

674

712

16 x 11.5

572

575

29

800

100-132

797

837

875

24 x 11.5

350

760

50

800

160

797

837

875

24 x 11.5

700

810

70

1000

132-180

1003

1043

1081

24 x 11.5

415

730

85

1000

200

1003

1043

1081

24 x 11.5

830

770

105

1120

132-200

1124

1174

1214

24 x 11.5

450

825

110

1250

160-225

1261

1311

1351

24 x 11.5

500

1250

250-280

1261

1311

1351

24 x 11.5

100

1400

180-225

1415

1465

1545

24 x 11.5

560

1400

250-315

1415

1465

1545

24 x 11.5

1120

1600

180-225

1587

1637

1717

32 x 11.5

630

1600

250-315

1587

1637

1717

32 x 11.5

1260

① Nominal size, an extension duct may be needed for different sizes in the case of vibration-dampened installation •

② Motor size B3 style •

③ Weight without motor (approx.) [kg] •

⊗ Upon request
