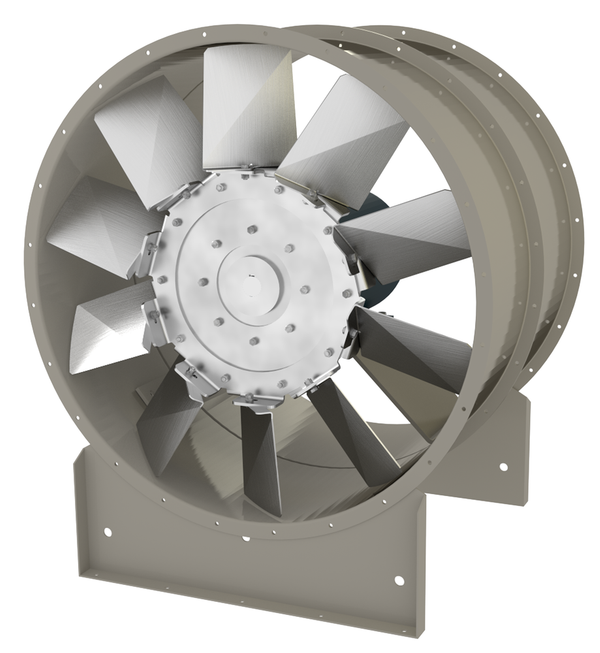

AXO 10/50

Axial fans with direct drive for building ventilation and aeration

Impellers with different blade pitch angles are used depending on the size and the desired output; please specify when ordering. Compact size enables installation even when space is tight. Motors with thermal contacts or a PTC thermistor upon request

Suitable in horizontal and vertical style.
Casing available in all RAL colours
Also available with acoustic insulation.
Efficiency up to 63%
15 sizes
Impeller’s nominal Ø 315 to 1,600 mm
Volume flow rate V. max. 200,000 m3/h
Total pressure increase pt max. 1,600 Pa
M style – with direct drive. Impeller assembled directly on the motor shaft.

Application

Application

Supply or exhaust air as round duct fan
Free inlet or connected to the pipeline on the inlet side
Free outlet or connected to the pipeline on the outlet side
Fan for reversible operation.

Description

Variants

Temperature limits For ISO-F motors: 60°C For ISO-H motors: 80°C.

Accessories

Shock pulse bearing monitoring STI
Thermal motor protection
Acoustic insulation
Weather protection roof for acoustic insulation
Round silencers TSR (inlet and outlet side)
Extension duct
Inspection hatch
Flexible connectors
Matching flange
Equipotential bonding
Bellmouth
Cover grille (inlet and outlet side)
Diffuser
Outlet duct with cover grille
Mounting feet (for horizontal assembly)
Brackets (for vertical assembly)
Spring anti-vibration mounts
Rubber anti-vibration mounts
Local isolator attached (terminal box not required)
Angular wall ring with brackets (inlet and outlet side)
Flow redresser
Silicone-free type
Surface protection powder-coated and/or hot-dip galvanised in corrosion protection category C2 to C5M

Technical information

Dimensions and weight

AXO 10/50

Dimensions [mm]

①	②	Ø clear width	Øk	ØD	zxd	L	M_max	③
315	71-80	320	356	386	8 x 9.5	150	265	6
400	71-90	401	438	468	12 x 9.5	188	348	11
400	100	401	438	468	12 x 9.5	376	390	16
500	80-100	504	541	571	12 x 9.5	225	570	16
500	90-132	504	541	571	12 x 9.5	450	451	22
630	90-112	634	674	712	16 x 11.5	286	595	30
630	132	634	674	712	16 x 11.5	572	575	29
800	100-132	797	837	875	24 x 11.5	350	760	50
800	160	797	837	875	24 x 11.5	700	810	70
1000	132-180	1003	1043	1081	24 x 11.5	415	730	85
1000	200	1003	1043	1081	24 x 11.5	830	770	105
1120	132-200	1124	1174	1214	24 x 11.5	450	825	110
1250	160-225	1261	1311	1351	24 x 11.5	500	⊗	⊗
1250	250-280	1261	1311	1351	24 x 11.5	1000	⊗	⊗
1400	180-225	1415	1465	1545	24 x 11.5	560	⊗	⊗
1400	250-315	1415	1465	1545	24 x 11.5	1120	⊗	⊗
1600	180-225	1587	1637	1717	32 x 11.5	630	⊗	⊗
1600	250-315	1587	1637	1717	32 x 11.5	1260	⊗	⊗

① Nominal size; an extension duct may be needed for different sizes in the case of vibration-dampened installation •

② Motor size B3 style •

③ Weight without motor (approx.) [kg] •

⊗ Upon request
