ROOF SMOKE EXTRACT FANS

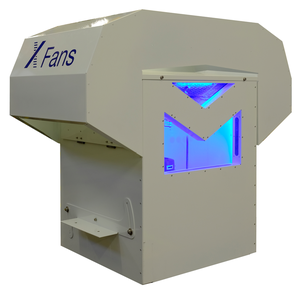

BVDAX

Casing in corrosion protection category C5M as standard
Casing available in all RAL colours
Thermally insulated casing
Meets all legal framework conditions (smoke extraction, German Energy Saving Ordinance)
Building envelope's leakage and insulation properties are not compromised
Heat transition class T4 (as per DIN EN 1866)
Temperature bridge class TB4 (as per DIN EN 1866)
Certified safety (functional integrity for F400, F300 and F200)
Weatherproof and robust (EN 12101-3, SL 1000)
Powerful (volume flow rates exceeding 100,000 m3/h)
Versatile (can be integrated with all TROX TLT axial fans up to F400 and NG 1120)
Lightweight and durable, easy assembly
Easy maintenance
Bellmouth (integrated in the case of free inlet)

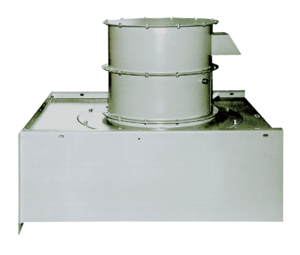

BVW-D

Casing and impeller made of sheet steel
Protected by polyester resin-based powder coating, with bellmouth and motor fastening plate
6 sizes
More than 35 types
Volume flow rate V max. 50,000 m³/h
Total pressure increase p1 max. 2,100 Pa

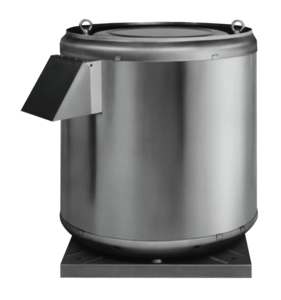

BVD

For conveying smoke gases of temperature classes F400 and F600. Vertical outlet, with direct drive due to three-phase current IEC standard motor Encased against volume flow rate and separately ventilated through a motor cooling air system Casing made of corrosion-resistant aluminium

6 sizes
More than 100 types
Volume flow rate V max. 54,360 m³/h
Total pressure increase p1 max. 2,300

Powder coating possible in all RAL colours

Corrosion protection category up to C5
With deflector hood SL1000

Type can be insulated for the building
