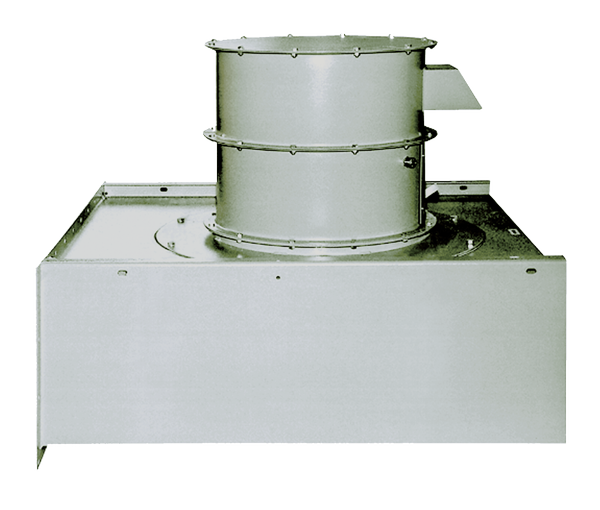

BVW-D
00244970_0

BVW-D

For conveying smoke gases of the temperature class F600

  • Casing and impeller made of sheet steel
  • Protected by polyester resin-based powder coating, with bellmouth and motor fastening plate
  • 6 sizes
  • More than 35 types
  • Volume flow rate V max. 50,000 m³/h
  • Total pressure increase p1 max. 2,100 Pa

Application

Application

  • Roof-mounted smoke exhaust fan for free outlet
  • Free inlet or connected on the inlet side
  • Dual function (ventilation and smoke extraction possible)

Description

Variants

  • In temperature classes F400 and F600

Accessories

  • Fan diagnosis system VD
  • Shock pulse bearing monitoring STI
  • Steel roof base for smooth roofs
  • Sound attenuating base
  • Outlet box incl. cover grille and self-powered shut-off damper
  • Flexible connectors
  • Matching flange
  • Equipotential bonding
  • Cover grille (inlet side)
  • Local isolator loose
  • Insulated base plate
  • Silicone-free type
  • Frequency inverter (for ventilation mode only)
  • Extract air and smoke extract controller

Classification, standards and guidelines

  • Temperature / time classification as per EN 12101 – Part 3
  • F600 CE no.: 0761-CPR-0008 with declaration of performance (DoP)
  • General building inspectorate licence no. Z-78.-11-127

Technical information

Quick sizing

  • Quick sizing
BVW-D Leistungsbereich 00229505_0

t = 20 °C
ρ = 1,2 kg/m³
① Totaldruckerhöhung
② Volumenstrom

Dimensions and weight

  • Dimensions and weight

Dimensions [mm]①ADEFE1ØGH③

A D E F E1 ØG H

315

295

316

415

632

200

400

375

92

355

295

356

455

712

225

400

675

125

400

325

401

500

802

255

400

375

165

500

401

501

600

1002

320

500

450

230

630

516

626

725

1252

400

500¹⁾/800²⁾

425¹⁾/680²⁾

385

710

566

701

800

1402

4500

500¹⁾/800²⁾

425¹⁾/680²⁾

475

¹⁾ Up to motor size 132

²⁾ Up to motor size 160

① Nominal size • ③ Max. weight [kg]




detailed design

HERE YOU’LL HAVE DIRECT ACCESS TO SELECT THE BVW VIA THE TROX X-FANS PRODUCT CONFIGURATOR

Following features are at your disposal::
  • Based on your requirements of volume-flow, pressure and installation arrangement including desired accessories select the ideal fan…
  • Appropriate selection according to required power, sound, nominal size, price and production period
  • Options and accessories get assessed for plausibility
  • All required documents (e.g. technical specification, tender specification, certificates, drawings etc.) of specific selected fan to be downloaded or send by E-Mail

Proceed to fan design
