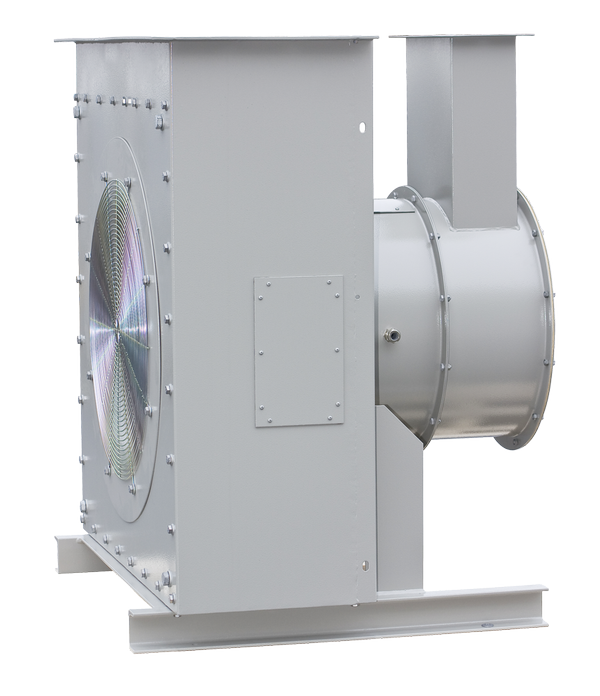

BVW-B

For conveying smoke gases of the temperature class F600

Casing and impeller made of sheet steel, protected by polyester resin-based powder coating, with bellmouth and motor fastening plate
6 sizes
More than 35 types
Volume flow rate V max. 50,000 m³/h
Total pressure increase p1 max. 2,100 Pa

Application

Application

Smoke exhaust fan for floor-mounted installation in or outside of the fire area.
Dual smoke extract and ventilation function.

Description

Variants

BVW-A/B: floor-mounted installation, outside of the fire area
BVW-AI/B: floor-mounted installation – insulated, outside of the fire area
BVW-R/B: floor-mounted installation, inside the fire area

Accessories

Fan diagnosis system VD
Shock pulse bearing monitoring STI
Acoustic and thermal insulation
Base frame
Spring anti-vibration mounts
Flexible connectors (inlet and outlet)
Inlet box
Pipeline connection
Matching flange
Matching frame
Self-powered shut-off damper (for duct connection)
Cover grille (inlet and outlet side)
Equipotential bonding
Outlet duct with cover grille
Local isolator loose (for outside of fire area)

Classification, standards and guidelines

Temperature / time classification as per EN 12101 – Part 3
F600 CE no.: 0761-CPD-0034 with declaration of performance (DoP) General building inspectorate licence no. Z-78.-11-127

Technical information

Quick sizing

BVW Leistungsbereich 00233544_0

t = 20 °C
ρ = 1,2 kg/m³
① Totaldruckerhöhung
② Volumenstrom

Dimensions and weight

BVW-A_B with inlet box

Dimensions of the BVW-AB series [mm]①AA1BCDFhKL1L2∅kzxd

①	A	A₁	B	C	D	F	h	K	L₁	L₂	∅k	zxd
315	295	252	632	415	316	315	65	500	850	850	356	8x10
355	295	252	632	415	356	260	65	500	850	850	395	8x10
400	325	282	802	500	401	315	65	550	950	850	438	12x10
500	401	357	1002	600	501	410	80	650	1150	850	541	12x10
630	516	452	1252	725	626	395^¹⁾/600^²⁾	80	850	1550	1200	674	16x12
710	566	502	1402	800	701	395^¹⁾/600^²⁾	100	900	1650	1400	751	16x12

^¹⁾ Up to motor size 132

^²⁾ As of motor size 160

① Nominal size

Dimensions of the BVW-R/B series①AA1BCD∅GHvhKL1L2M

①	A	A1	B	C	D	∅G	H	v	h	K	L1	L2	M
315	295	252	632	415	316	400	375	440	65	500	850	850	580
355	295	252	632	415	356	400	375	440	65	500	850	850	580
400	325	282	802	500	401	400	375	440	65	550	950	850	650
500	401	357	1002	600	501	500	450	540	80	650	1150	850	850
630	516	452	1252	725	626	500¹⁾/800²⁾	425¹⁾/680²⁾	610¹⁾/760²⁾	80	850	1550	1200	1050
710	566	502	1402	800	701	500¹⁾/800²⁾	425¹⁾/680²⁾	610¹⁾/760²⁾	100	900	1650	1400	1250

¹⁾ Up to motor size 132

²⁾ As of motor size 160

① Nominal size

detailed design

HERE YOU’LL HAVE DIRECT ACCESS TO SELECT THE BVW VIA THE TROX X-FANS PRODUCT CONFIGURATOR

Following features are at your disposal::

Based on your requirements of volume-flow, pressure and installation arrangement including desired accessories select the ideal fan…
Appropriate selection according to required power, sound, nominal size, price and production period
Options and accessories get assessed for plausibility
All required documents (e.g. technical specification, tender specification, certificates, drawings etc.) of specific selected fan to be downloaded or send by E-Mail

Proceed to fan design

Downloads

product information

EN_DoP_BVW_R_F600.pdf

61 KB pdf
QUICK SELECTION GUIDE

2016 7,1 MB pdf

certificates

Declaration of Conformity

GB_K4_CE-Doku_Konform_TROX-X-FANS_20211213 Declaration of Conformity 980 KB pdf
Type BVW-A/B F600

DoP/BVW-A/B-F600 Declaration of performance 61 KB pdf
Type BVW-R/B F600

DoP/BVW-R/B-F600 Declaration of performance 61 KB pdf
