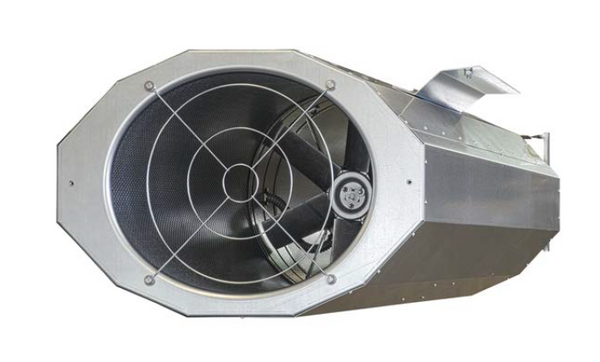

BVGAXR-X

For conveying smoke gases of the temperature class F300 / F400

  •  Ceiling suspension
  •  Compact, space-saving, flat style
  •  Max. thrust up to 42 N
  •  Without outlet guide vanes
  •  Nominal sizes: 315, 355, 400
  •  Impeller made of steel, directly on the motor shaft
  •  Motor arranged outside of flow
  •  Terminal box assembled outside on the casing
  •  Integral sound attenuators on the inlet and outlet side
  •  Edged, oval design
  •  Baffle plate on the inlet and outlet side

General information

Application

  • Setup inside of the smoke compartment
  • Ceiling suspension
  • In the reversible design

Nominal sizes

  • 315
  • 355
  • 400

Variants

  • Temperature classes F300 and F400

Construction

Surface protection:

  • Polyester resin-based powder coating RAL 9006
  • Baffle plate made of aluminium

Parts and characteristics

  • Ready-to-commission fan consisting of mechanical and electrical components
  • Documentation of the data on the device type plate
  • Air direction indicated on the device

Accessories

  • Possible in all RAL colours
  • Corrosion protection category C3 to C4M
  • Fan diagnostic system
  • Shock pulse bearing monitoring STI
  • Underground car park controller
  • CO alarm system
  • Local isolator

Construction features

  • Integral sound attenuators
  • Reversible

Material and surfaces

Surface protection:

  • Polyester resin-based powder coating RAL 9006
  • Baffle plate made of aluminium

Classification, standards and guidelines

  • BVGAXR-X - F300: CE no.: 0761-CPR-0576
  • BVGAXR-X - F400: CE no.: 0761-CPR-0906
  • Incl. application approval (DoP)

Technical data

  • Nominal sizes 315, 355 and 400 mm
  • Thrust 4-42 N
  • Reversing thrust 4-33 N
  • Dahlander circuit
  • Ventilation and smoke extract:
  • Certified in accordance with EN 12101-3
  • F400: 400 °C 120 minutes
  • F300: 300 °C 60 minutes

Technical information

Function, Specification text

  • FUNCTION
  • SPECIFICATION TEXT
The fan is designed exclusively for conveying air and transporting fire gases in accordance with its temperature/time classification.


Not suitable for ATEX applications.

Specification text
Smoke extract jet fan type BVGAXR-X-.....

For conveying smoke gases of temperature classes F300 and F400With DoP according to EN 12101-T3.

Reversible air direction, with direct drive. Suitable for setup inside and outside of the smoke compartment
Consisting of:

Fan with sound attenuators integrated in the casing, on the inlet and outlet side. The special motor arranged in the smoke gas flow, mounted with temperature-resistant terminal box on the casing.

Sound attenuator on the inlet and outlet side, edged, oval construction. Baffle plate on the outlet side. Suspension brackets

Surface protection: Jet fan with air baffle on both sides and suspension brackets made of sendzimir-galvanised sheet steel.

Dimensions

  • Dimensions
BVGAXR-X
BVGAXR-X-Dimension-1
BVGAXR-X-Dimension-1
BVGAXR-Dimension-2

NG

Ød

Ødi.L

B

B1

B2

H

H1

L1

L2

L3

C

②

315

355

400

12

320

567

495

555

357

358

2184

1960

500

112

95

12

359

607

535

595

397

398

2210

1960

500

125

98

12

401

652

580

640

442

443

2240

1960

500

140

100

② Weight (approx.) [kg]

Downloads

product information

  • Product data sheet BVGAXR-X

    BVGAXR-X_PD_2026_05_05_DE_en Product data sheet 340 KB pdf
