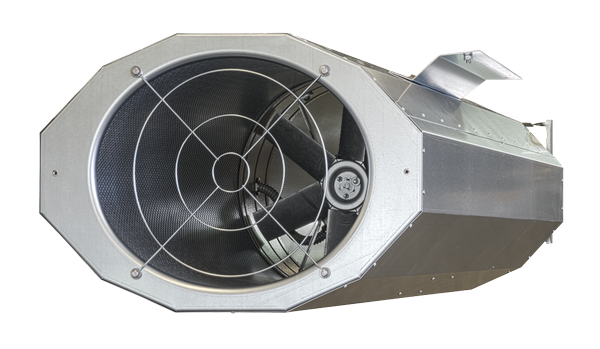

BVGAXO

BVGAXO/N/R and BVGREH

For conveying smoke gases of temperature classes F300 and F400

Ceiling suspension
Compact, space-saving, flat style

Axial-type jet fans:

Max. thrust up to 73 N,
With or without outlet guide vanes (coordinated to the application)
Unidirectional as series: GAXO-C or GAXN
Reversible as series: BVGAXR / BVGAXR-C
Nominal sizes: 315, 400
Impeller made of cast aluminium, directly on the motor shaft
Motor arranged in the flow
Terminal box assembled outside on the casing
Sound attenuator on the inlet and outlet side
Edged, oval design
Cover grille on the inlet and outlet side
Baffle plate on the outlet side

Centrifugal-type jet fans:

Max. thrust up to 97 N,
nominal sizes 50 / 75 / 100
Unidirectional

Application

Application

Installation inside the fire zone
Ceiling suspension
In the unidirectional and reversible type

Description

Variants

Temperature classes F300 and F400
Unidirectional as axial fan series: BVGAXO-C / BVGAXN
Reversible as axial fan series: BVGAXR / BVGAXR-C
Unidirectional as centrifugal fan series: GREH

Accessories

Possible in all RAL colours
Corrosion protection category C3 to C4M
Fan diagnosis system VD
Shock pulse bearing monitoring STI
Underground car park controller
CO alarm system
Local isolator loose

Classification, standards and guidelines

BVGAXO – F300: CE no.: 0761-CPD-0067
BVGAXN – F300: CE no.: 0761-CPD-0070
BVGAX-C – F300: CE no.: 0761-CPD-0239
BVGAX-C – F400: CE no.: 0761-CPR-0429
BVGAXR – F300: CE no.: 0761-CPD-0068
BVGREH – F300: CE no.: 0370-CPR-2353
Incl. application approval (DoP)

Technical information

Dimensions and weight

BVGAXO-C

BVGAXO-C, dimensions [mm]①L1L2L3Ø clear widthBB1B2HH1Ø d②

①	L₁	L₂	L₃	Ø clear width	B	B₁	B₂	H	H₁	Ø d	②
315	2111	2005	500	320	596	560	620	340	345	12	95
400	2153	2005	500	401	706	560	620	430	430	12	100

① Nominal size • ② Weight (approx.) [kg]

BVGAXN, dimensions [mm]①L1L2L3Ø clear widthBB1B2HH1Ø d②

①	L₁	L₂	L₃	Ø clear width	B	B₁	B₂	H	H₁	Ø d	②
315	2710	2610	500	320	520	560	620	340	345	12	95
400	2774	2648	500	401	630	560	620	430	435	12	100

① Nominal size • ② Weight (approx.) [kg]

BVGAXR-C, dimensions [mm]①L1L2L3Ø clear widthBB1B2HH1Ø dc②

①	L₁	L₂	L₃	Ø clear width	B	B₁	B₂	H	H₁	Ø d	c	②
315	2217	2005	500	320	569	560	620	340	345	12	106	95
400	2288	2005	500	401	706	560	620	430	435	12	142	100

① Nominal size • ② Weight (approx.) [kg]

detailed design

HERE YOU’LL HAVE DIRECT ACCESS TO SELECT THE BVGAX VIA THE TROX X-FANS PRODUCT CONFIGURATOR

Following features are at your disposal::

Based on your requirements of volume-flow, pressure and installation arrangement including desired accessories select the ideal fan…
Appropriate selection according to required power, sound, nominal size, price and production period
Options and accessories get assessed for plausibility
All required documents (e.g. technical specification, tender specification, certificates, drawings etc.) of specific selected fan to be downloaded or send by E-Mail

Proceed to fan design

Downloads

product information

QUICK SELECTION GUIDE

2016 7,1 MB pdf
Type BVGAXR-X/BVGAXO-X-F300

DoP/BVGAXR-X/BVGAXO-X-F300/001 Declaration of performance 130 KB pdf
Type BVGAXR-X/BVGAXO-X-FU-F300

DoP/BVGAXR-X/BVGAXO-X-FU-F300/001 Declaration of performance 130 KB pdf

certificates

Declaration of Conformity

GB_K2_CE-Doku_Konform_TROX-X-FANS_20220520 Declaration of Conformity 450 KB pdf
Declaration of Conformity 2006/42/EG

380 KB pdf
Type BVGAXN-F300

DoP/BVGAXN-F300 Declaration of performance 86 KB pdf
Type BVGAXO-F300

DoP/BVGAXO-F300 Declaration of performance 86 KB pdf
Type BVGAXO-X-F300

DoP/BVGAXO-X-F300 Declaration of performance 87 KB pdf
Type BVGAXO-X-FU-F300

DoP/BVGAXO-X-FU-F300 Declaration of performance 260 KB pdf
Type BVGAXR-C/BVGAXO-C-F300

DoP/BVGAXR-C/BVGAXO-C-F300 Declaration of performance 87 KB pdf
Type BVGAXR-C/BVGAXO-C-F400

DoP/BVGAXR-C/BVGAXO-C-F400 Declaration of performance 87 KB pdf
Type BVGAXR-F300

DoP/BVGAXR-F300 Declaration of performance 87 KB pdf
Type BVGREH-F300

DoP/BVGREH-F300 Declaration of performance 86 KB pdf
