Radial fans

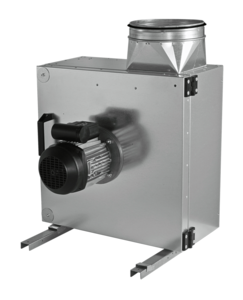

KFB

Especially developed for the tough operating conditions of a kitchen extract air fan. The impellers used with backward curved blades are insensitive to fatty deposits. They are also more efficient, which means the operating costs and the investment costs for the transformer control unit are much lower.

5 sizes
From 200 to 400 mm
Volume flow rate V max. approx. 7,200 m³/h

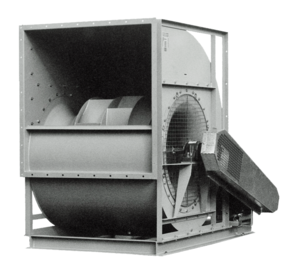

REH

High-performance impeller made of sheet steel with backward curved blades. The impellers have GG screw-on hubs with taper lock steel clamping bushes. Steel weld-in hubs are used as of size 1120. Bellmouth aerodynamically optimised

16 sizes (nominal size: 315 to 1600)
Volume flow rate V max. 100,000 m³/h
Total pressure increase max. 3,500 Pa
Four casing orientations available (0°, 90°, 180°, 270°).
Can also be used for process exhaust air:
Explosion protection as per ATEX up to Ex II 2/2 G c IIB T4
Hot gas up to T max. +250°C constant temperature

RZH

High-performance impeller made of sheet steel with backward curved blades. Bellmouth aerodynamically optimised. Welding robots for consistent impeller precision

12 sizes
Impeller’s nominal Ø 400 to 1,400
Volume flow rate V max. 200,000 m³/h
Total pressure increase p1 max. 3,500 Pa
Four casing orientations available (0°, 90°, 180°, 270°)
