Roof ventilation fans

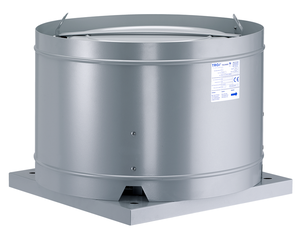

DRV-EC

Energy-efficient, rotary speed-controllable and low-noise due to EC technology. Up to 50% energy savings achievable in practice

Controlled ventilation possible (basic and needs-based ventilation)
Optionally available with regulation (constant pressure or constant volume flow rate)
Simple installation and maintenance-friendly
High efficiency, even in controlled mode
Rotary speed steplessly adjustable
Operating point can be optimally adjusted to the system requirements
Simple system balancing
A system’s volume flow rate and its pressure can be regulated
Cut operating costs
Longer service life than conventional motors
Unit sizes
Volume flow rate V max. 3,700 m3/h
Total pressure increase p1 max. 450 Pa

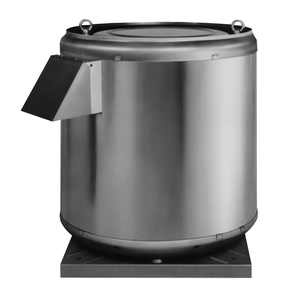

DRVF-H

The bellmouth is deep-drawn for the best flow properties and therefore enables high aerodynamic efficiency. The shape of the casing guarantees a truly vertical, powerfully guided air jet. Cooling air is supplied to the motor via a duct

7 sizes
More than 100 types
For a volume flow rate of max. 54,300 m³/h
Explosion protection as per ATEX up to Ex II 2/2 G c IIB T4
DRVF-H series: max. temp. +60°C in continuous operation
DRVF-H series: max. temp. +120°C in continuous operation, suitable for kitchen extract air
Satisfies VDI Guidelines 2078 and 2052.

DAX

Meets all legal framework conditions set down in the German Energy Saving Ordinance
Casing in corrosion protection category C5M as standard
Casing available in all RAL colours
Low operating and maintenance costs
Building envelope's leakage and insulation properties are not compromised
Heat transition class T4 (as per DIN EN 1866)
Temperature bridge class TB4 (as per DIN EN 1866)
Weatherproof and robust, snow load class SL 1000
Powerful (volume flow rates exceeding 100,000 m3/h)
Versatile (can be used with all TROX TLT axial fans)
Lightweight and durable,
Easy installation
Bellmouth integrated in the case of free inlet
