00227822_0
AXO 9/27


00227822_0

AXO 9/27

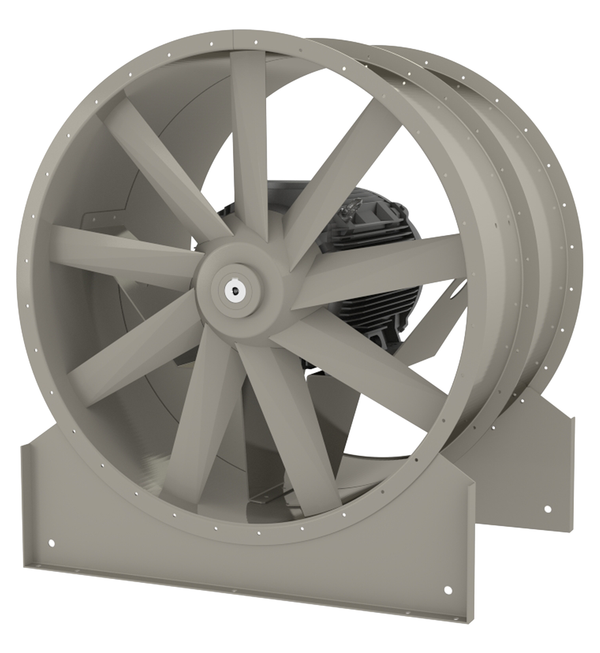

Axial fans with direct drive for building ventilation and aeration

Different blade pitch angles are used depending on the size and the desired output; please specify when ordering. Compact size enables installation even when space is tight. Motors can come with thermal contacts or a PTC thermistor

  • Suitable in horizontal and vertical style.
  • Effect-optimised steel impeller, efficiency up to 74%
  • Casing available in all RAL colours
  • Also available with acoustic insulation.
  • 15 sizes
  • Impeller’s nominal Ø 315 to 1,600 mm
  • Volume flow rate V. max. 200,000 m3/h
  • Total pressure increase pt max. 1,000 Pa
  • M-D style: air direction with motor in outlet, impeller assembled directly on the motor shaft.
  • Conveying temperatures of up to +130°C possible with special motors (upon request)

Application

Application

  • Supply or exhaust air as round duct fan
  • Free inlet or connected to the pipeline on the inlet side
  • Free outlet or connected to the pipeline on the outlet side

Description

Variants

  • Temperature limits For ISO-F motors: 60°C For ISO-H motors: 80°C. Up to 130°C with special motors

Accessories

  • Roof cowl DAX
  • Shock pulse bearing monitoring STI
  • Thermal motor protection
  • Acoustic insulation
  • Weather protection roof for acoustic insulation
  • Round silencers TSR (inlet and outlet side)
  • Extension duct
  • Inspection hatch
  • Self-powered shut-off damper
  • Flexible connectors
  • Matching flange
  • Equipotential bonding
  • Bellmouth
  • Cover grille (inlet and outlet side)
  • Diffuser
  • Outlet duct with cover grille
  • Mounting feet (for horizontal assembly)
  • Brackets (for vertical assembly)
  • Spring anti-vibration mounts
  • Rubber anti-vibration mounts
  • Local isolator attached (terminal box not required)
  • Angular wall ring with brackets (inlet and outlet side)
  • Flow redresser
  • Silicone-free type
  • Surface protection powder-coated and/or hot-dip galvanised in corrosion protection category C2 to C5M

Technical information

Dimensions and weight

  • Dimensions and weight

Dimensions [mm]

Ø clear width Øk ØD zxd L Mmax

315

71-80

320

356

386

8 x 9.5

150

265

6

400

71-90

401

438

468

12 x 9.5

188

348

11

400

100

401

438

468

12 x 9.5

376

390

16

500

80-100

504

541

571

12 x 9.5

225

570

16

500

90-132

504

541

571

12 x 9.5

450

451

22

630

90-112

634

674

712

16 x 11.5

286

595

30

630

132

634

674

712

16 x 11.5

572

575

29

800

100-132

797

837

875

24 x 11.5

350

760

50

800

160

797

837

875

24 x 11.5

700

810

70

1000

132-180

1003

1043

1081

24 x 11.5

415

730

85

1000

200

1003

1043

1081

24 x 11.5

830

770

105

1120

132-200

1124

1174

1214

24 x 11.5

450

825

110

1250

160-225

1261

1311

1351

24 x 11.5

500

1250

250-280

1261

1311

1351

24 x 11.5

1000

1400

180-225

1415

1465

1545

24 x 11.5

560

1400

250-315

1415

1465

1545

24 x 11.5

1120

1600

180-225

1587

1637

1717

32 x 11.5

630

1600

250-315

1587

1637

1717

32 x 11.5

1260

① Nominal size; an extension duct may be needed for different sizes in the case of vibration-dampened installation •

② Motor size B3 style •

③ Weight without motor (approx.) [kg] •

⊗ Upon request
